Camara Medicion Temperatura Corporal HIKVISION DS-2TD1217B-3PA

Camara de Medicion de Temperatura Corporal Manual HIKVISION DS-2TD1217B-3/PA

La cámara de medición de temperatura corporal de torreta termográfica Hikvision DS-2TD1217B-3/PA es capaz de medir la temperatura del objeto con una alta precisión en tiempo real. Es capaz de descubrir y rastrear a las personas con una temperatura corporal más alta entre el área pública abarrotada, puede ser ampliamente utilizado en lugares como aduanas, aeropuertos, escuelas y hospitales para inspección y cuarentena.

Especial para combatir el COVID-19 o Coronavirus.

Camara de Medicion de Temperatura Corporal Manual HIKVISION DS-2TD1217B-3/PA

La cámara de medición de temperatura corporal de torreta termográfica Hikvision DS-2TD1217B-3/PA es capaz de medir la temperatura del objeto con una alta precisión en tiempo real. Es capaz de descubrir y rastrear a las personas con una temperatura corporal más alta entre el área pública abarrotada, puede ser ampliamente utilizado en lugares como aduanas, aeropuertos, escuelas y hospitales para inspección y cuarentena.

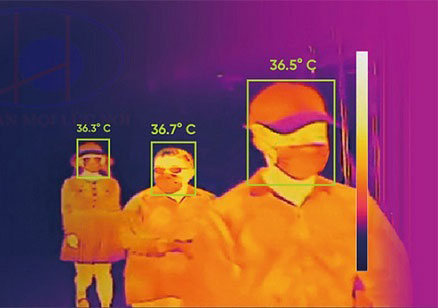

imagen-camara-termica-hikvision-covid19-coronavirus



Caracteristicas:
-Resolución 160 × 120 en canal térmico, sensor de alta sensibilidad.
-Rango de temperatura: 30 ° C a 45 ° C; precisión de temperatura: ± 0.5 ° C
-Función de alarma de excepción de temperatura confiable
-DNR 3D, mejora de detalles de imagen
-Alarma de audio

Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 160 × 120 (the resolution of output image is 320 × 240)
Pixel Interval 17 μm
Response Waveband 8 μm to 14 μm
NETD Less than 40 mK (25°C), F# = 1.1
Lens (Focal Length) 3.1 mm
IFOV 5.48 mrad
Field of View 50° × 37.2° (H × V)
Min. Focusing Distance 0.2 m
Aperture F1.1
Optical Module
Max. Image Resolution 2688 × 1520
Image Sensor 1/2.7″ Progressive Scan CMOS
Min. Illumination Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Shutter Speed 1s to 1/100,000s
Lens (Focal Length) 4 mm
Field of View 84° × 44.8°(H × V)
WDR 120 dB
Day & Night IR cut filter with auto switch
Image Function
Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture Combines details of thermal and optical image PIP, overlay thermal image on optical image
Smart Function
Temperature Measurement 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range 30 °C to +45 °C
Temperature Accuracy ± 0.5 °C
Infrared
IR Distance Up to 15 m
IR Intensity and Angle Automatically adjusted
Network
Main Stream Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240
Sub-Stream Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 704 × 576, 352 × 288, 320 × 240
Video Compression H.265/H.264/MJPEG
Audio Compression G    .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View Up to 20
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Integration
Alarm Input 1-ch inputs (0-5 VDC)
Alarm Output 1-ch relay outputs, alarm response actions configurable
Alarm Action SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white light alarm
Audio Input 1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level; impedance: 600 Ω
Reset 1 Reset Button
Communication Interface 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
SD Memory Card Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
Application Programming Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform
Client iVMS-4200, Hik-Connect
Web Browser IE9+, chrome31-44, Firefox 30-51, Safari 5.02+ (mac)
General
Menu Language 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power 12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3)
Power Consumption 12 VDC ± 20%: 0.5 A, max. 6 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W
Working Temperature/Humidity 10 °C to 35 °C(Indoor and windless environment use only)
95% or less
Protection Level IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimension 138.3 mm × 138.3 mm × 123.1 mm (5.45 ” × 5.45″ × 4.85 “)
Weight 940 g (2.07 lb)
